With the rapid development of the lighting industry, LED strips are gaining popularity due to their flexibility and versatility. The core technology that gives LED light strips their flexibility is largely due to their internal flexible printed circuit board (FPC). This thin, flexible substrate replaces traditional rigid PCBs. The application of flexible PCB technology has transformed LED strip lights from rigid products limited to straight-line installation into flexible lighting solutions that can be freely bent and shaped.

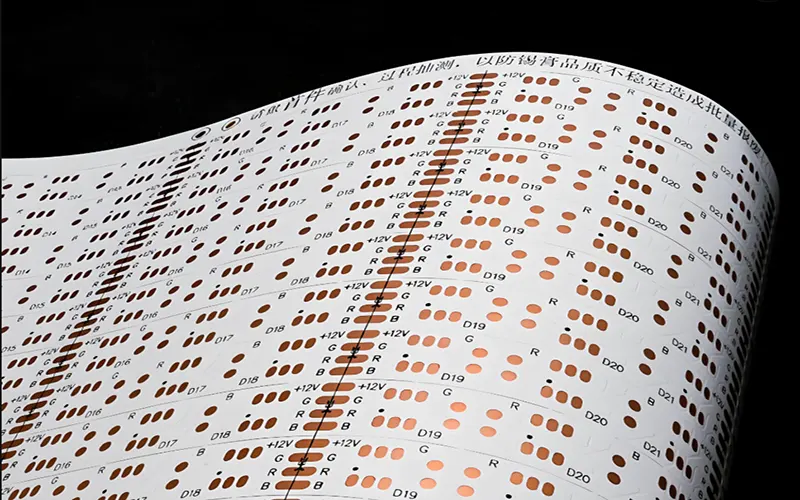

What is a Flexible PCB for LED Strip Lights?
A flexible printed circuit board (FPC) is a flexible insulating substrate made of a material such as polyimide (PI) or polyester (PET). PCBs are a key raw material for LED light strips. They are electronic interconnect components made by coating their surface with copper foil traces through a precision etching process. In LED strip lights, they act as the “neural skeleton”:
- Core Structure: Comprised of a flexible substrate + conductive copper foil traces + a protective cover film (cover film).
- Functional Core: Carries and connects micro-components such as LED chips, resistors, and capacitors, providing a stable current path.
- Form Advantages: Their bendable, foldable, and stretchable properties (typically capable of withstanding over 100,000 dynamic bends) allow the LED strip lights to perfectly conform to curved surfaces (such as furniture contours, automotive interiors, and curved ceilings), enabling installation scenarios that are impossible with traditional rigid boards.
Why are Flexible LED PCB the Preferred Choice for LED Strip Lights?
Flexible printed circuit boards are virtually irreplaceable in the field of flexible LED strip lights. Here are five key advantages:
High Flexibility
Flexible PCBs can conform tightly to any irregular surface (cylindrical, spherical, or wavy), unlocking endless design possibilities.
Thin and Lightweight
- Typically only 0.1mm-0.3mm thick, the overall thickness remains very thin and light even with LEDs installed.
- This significantly reduces installation space and is particularly suitable for recessed and concealed lighting (e.g., cabinets, baseboards, and narrow gaps).
Reliability
The integrated copper foil circuit eliminates the risk of loose connectors.
Simplified Production and High Customisation
Easily cut to any length (at pre-set cut points), and custom shapes (circular, custom patterns) are also available.
Easy Installation
Flexible circuit board LED strip lights are compact and easy to cut, splice, and paste, greatly improving installation efficiency.
How to Judge the Quality of Flexible Printed Circuit Boards?
When choosing LED strip lights, we must first carefully examine the quality of the flexible PCB.
Material Identification (PI, PET substrate, etc.)
- PI is the preferred material: it is heat-resistant (>260°C), flame-retardant, extremely flexible, and chemically stable. This is a standard feature of high-end light strips.
- In-Person Inspection: High-quality PI substrates offer excellent toughness and resist whitening and cracking with repeated bending; inferior PET easily creases and becomes brittle.
Copper Foil Thickness and Conductivity
- Thickness is key: The copper foil thickness of standard FPC light strips should be 2 oz. This is considered high quality. A value lower than this (e.g., 1 oz) increases resistance, leading to significant voltage drop (dimming at the tail end of the light strip), increased heat generation, and shortened lifespan.
- Measure voltage drop: Light the light strip and compare the brightness difference between the beginning and end. The smaller the difference, the thicker the copper foil and the better the conductive design.
FPC Bend Test and Heat Resistance
Bendability: A high-quality FPC should support small bends (e.g., a radius 10 times the thickness of the light strip itself) without breaking or damaging the circuitry.
Heat Resistance: When touching the FPC area (avoiding the LEDs) during operation, it should not be hot (be cautious if the temperature exceeds 70°C). A thermal imager can be used to observe temperature uniformity.
How Do Flexible PCB Affect the Performance of LED Strip?
First, the bendability of flexible printed circuit boards (FPCs) directly determines installation freedom and the breadth of their applications. It’s a key prerequisite for achieving curved surface conformity and creative lighting designs (such as complex furniture contours and curved ceilings).
Second, FPCs profoundly impact electrical performance and energy efficiency. Insufficient copper foil thickness increases line resistance, leading to significant voltage drop (manifested as dimming at the tail end of the light strip), unnecessary power loss (converted into heat), and even power supply overload.
Third, the FPC’s heat dissipation capacity is a key bottleneck limiting the long-term reliability of light strips. As one of the primary heat conduction paths, insufficient heat dissipation directly increases the junction temperature of the LED chip, leading to accelerated light decay (irreversible brightness drop), color rendering index (CRI) drift, and a significant reduction in LED lifespan (LED lifespan is inversely proportional to junction temperature).
Finally, the quality of the FPC directly impacts the mechanical lifespan and environmental adaptability of the light strip. High-quality PI substrate and appropriate design provide excellent vibration and bending fatigue resistance, making it suitable for dynamic applications such as automotive applications.
At the same time, the substrate’s inherent temperature and chemical resistance determine the light strip’s ability to survive and maintain reliability in harsh conditions, such as the high temperatures near kitchen stoves, the humidity of bathrooms, and the chemical atmosphere of garages.
Summary
Flexible PCB provide strong support for the thinness, flexibility, bendability, and diverse controllability of the LED strip. When selecting a LED strip, be sure to pay attention to the quality of the FPC: look for a PI substrate, a sufficient 2oz copper thickness, and reliable certifications. For high-power, long-distance, or harsh environment applications, be sure to use aluminum extrusions for heat dissipation.
FAQs
Flexible PCBs can bend freely, making them suitable for irregular and complex installation environments. Conventional rigid PCBs, on the other hand, can only be installed on flat surfaces.
High-quality FPCBs are not prone to breaking within a reasonable bending range. However, excessive stretching, repeated folding, or improper high-temperature soldering can damage the circuitry. Therefore, it is recommended to install them according to the specified requirements and avoid sharp bends.
Not necessarily. Flexibility is one characteristic of the FPCB, but more important factors include copper foil thickness, conductivity, thermal stability, and overall build quality.
Yes. A high-quality FPCB can effectively dissipate heat and maintain a stable current, preventing voltage drops or thermal damage that could shorten the life of the LEDs.
Yes, but only cut where the scissor icon is marked on the strip. Otherwise, the circuitry will be damaged.
